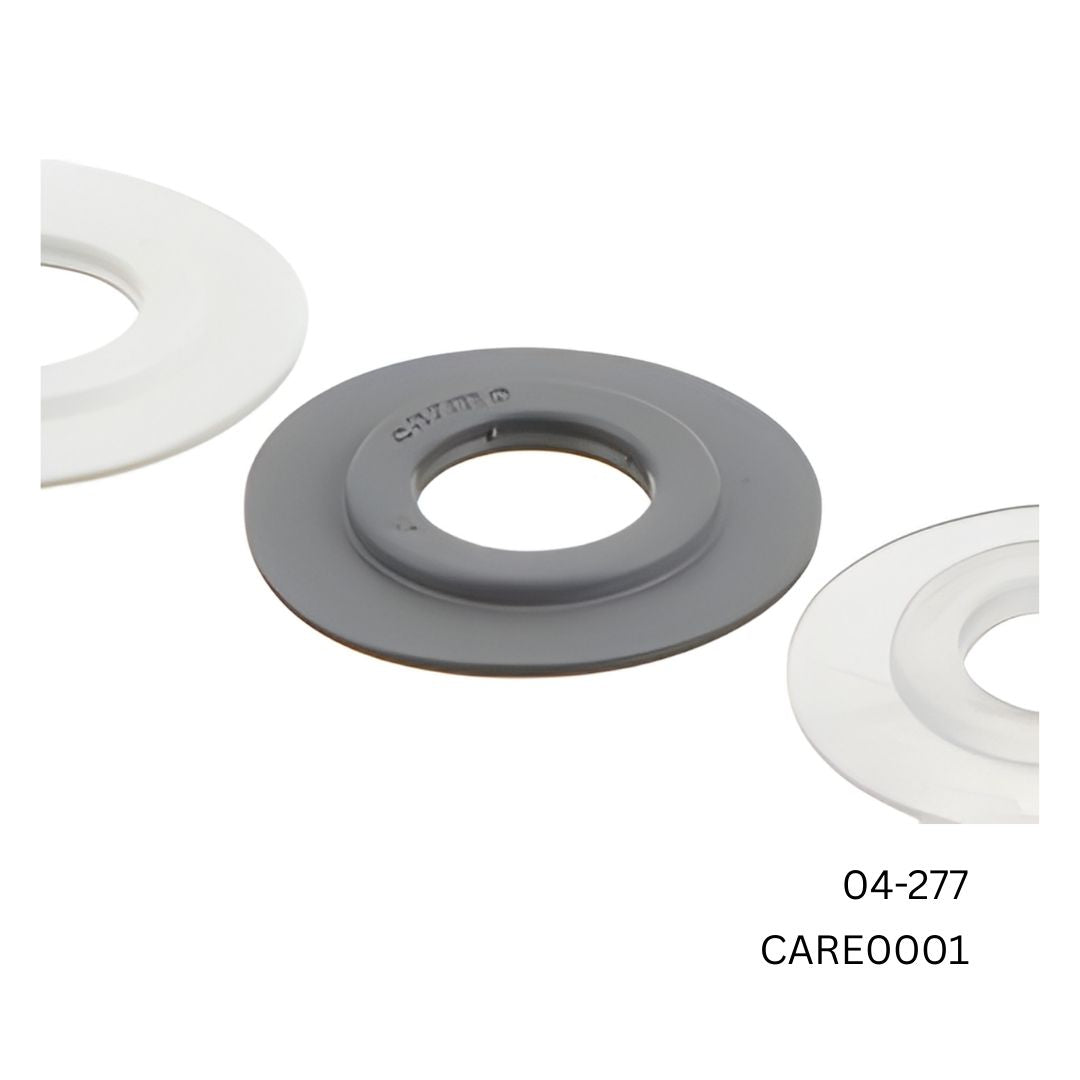

Carmo 04‑277 Heavy‑Duty Weldable PVC Eyelet – 15/37 mm Stacked HF‑Welding Eyelet for Banners, Tarpaulins & Building Wraps

Upgrade your high‑volume banner, tarpaulin and building‑wrap production with the Carmo 04‑277 Heavy‑Duty PVC Eyelet, engineered for maximum weld strength, long‑term durability and seamless integration into automatic HF‑welding systems. This robust 15/37 mm eyelet features a square‑shouldered design and comes delivered stacked, making it perfectly suited for automated punch‑and‑weld machines.

Designed for High‑Frequency Welding Performance

The 04‑277 eyelet is built using specialised PVC compounds and geometry optimised for HF welding. When welded, PVC eyelets fuse with the foil to create joints significantly stronger than metal eyelets, especially when used in mesh and high‑pull‑force environments.

• Will not tear out, rust or stain materials
• Provides superior pull‑force strength
• Supports clean welding and enhanced longevity in outdoor applications

Durable, Rust‑Free & Sustainable

PVC and plastic eyelets avoid corrosion entirely, ensuring long‑term aesthetics and material protection. Same‑material welding also makes recycling PVC and vinyl banners easier and more environmentally responsible.

Manufactured in Denmark, offering Consistency & Quality

Produced using high‑precision Danish injection moulding, each eyelet offers consistent performance, high durability and sustainability‑focused manufacturing standards.

Typical Applications

• Heavy‑duty PVC & vinyl banners
• Tarpaulins
• Building wraps
• Mesh materials
• Automated HF‑weld production environments

Technical Specifications

• Product Code: 04‑277-3106

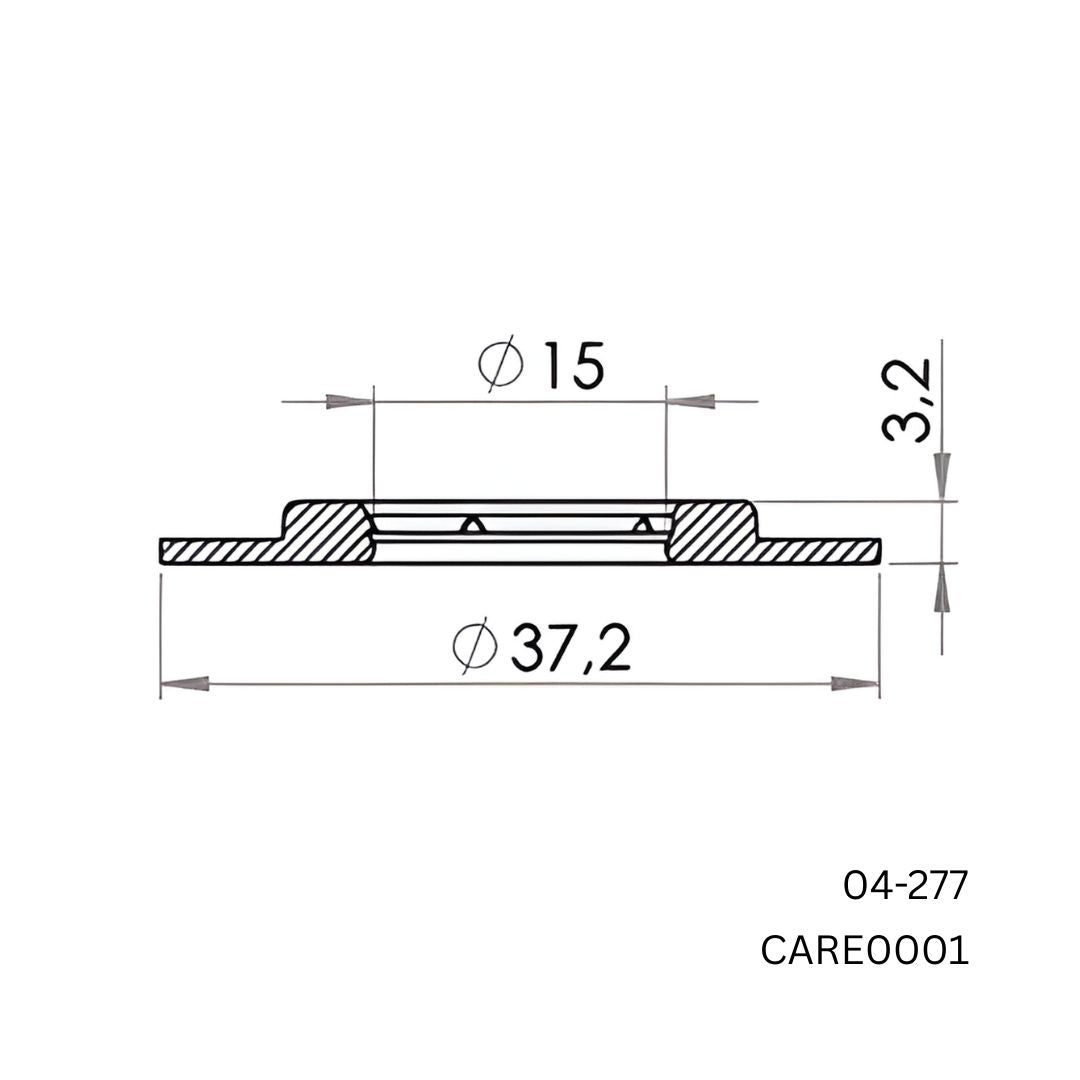

• Size: 15/37 mm heavy‑duty eyelet
• Shoulder Design: Square
• Configuration: Delivered stacked for automatic welding systems
• Colour : Natural

A dependable, professional‑grade solution for manufacturers requiring high strength, fast production throughput and long‑lasting outdoor performance.
