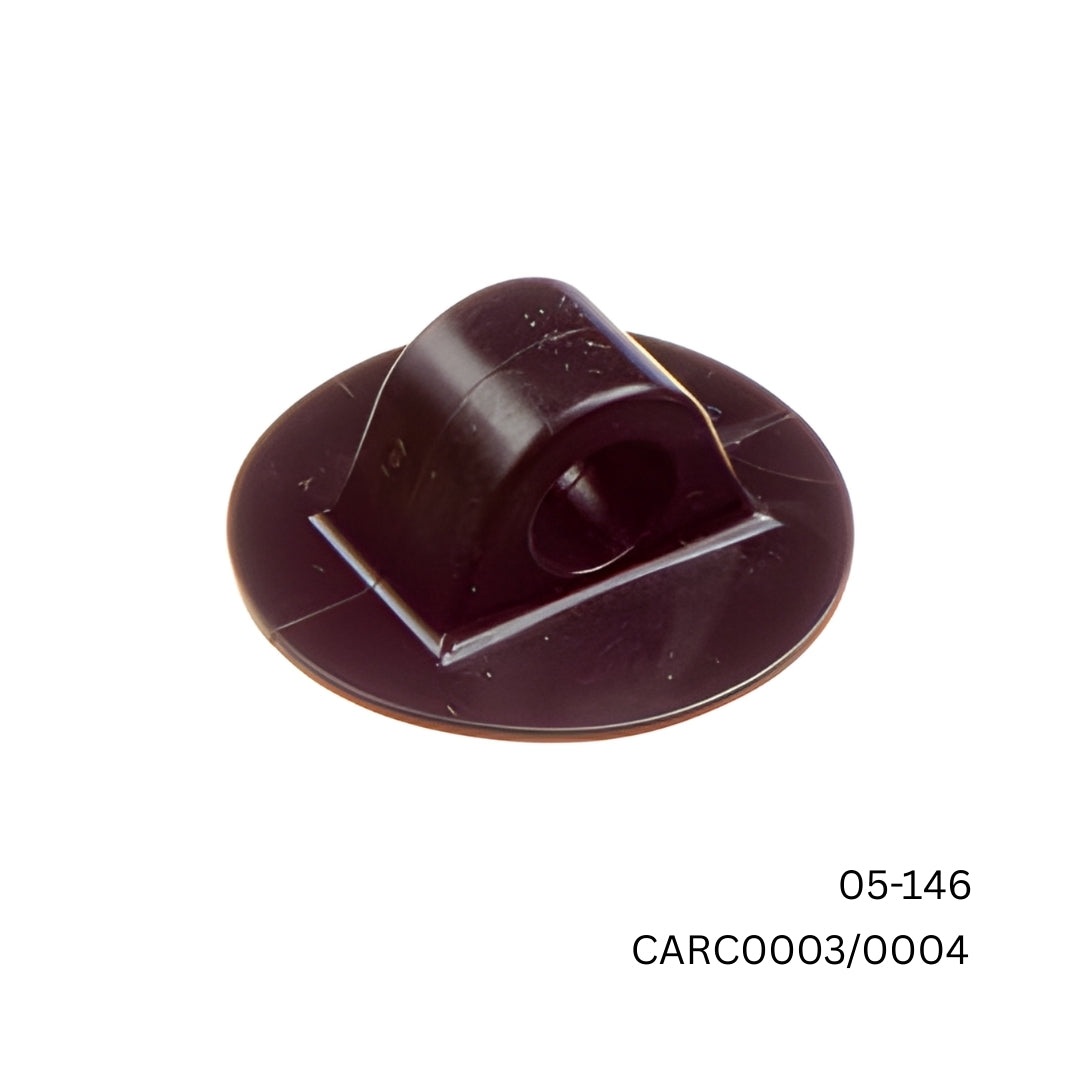

3000 x Carmo 05‑146 Weldable Plastic Attachment Point – 9/39 mm HF‑Welding Rope & Line Support (PVC) (Copy)

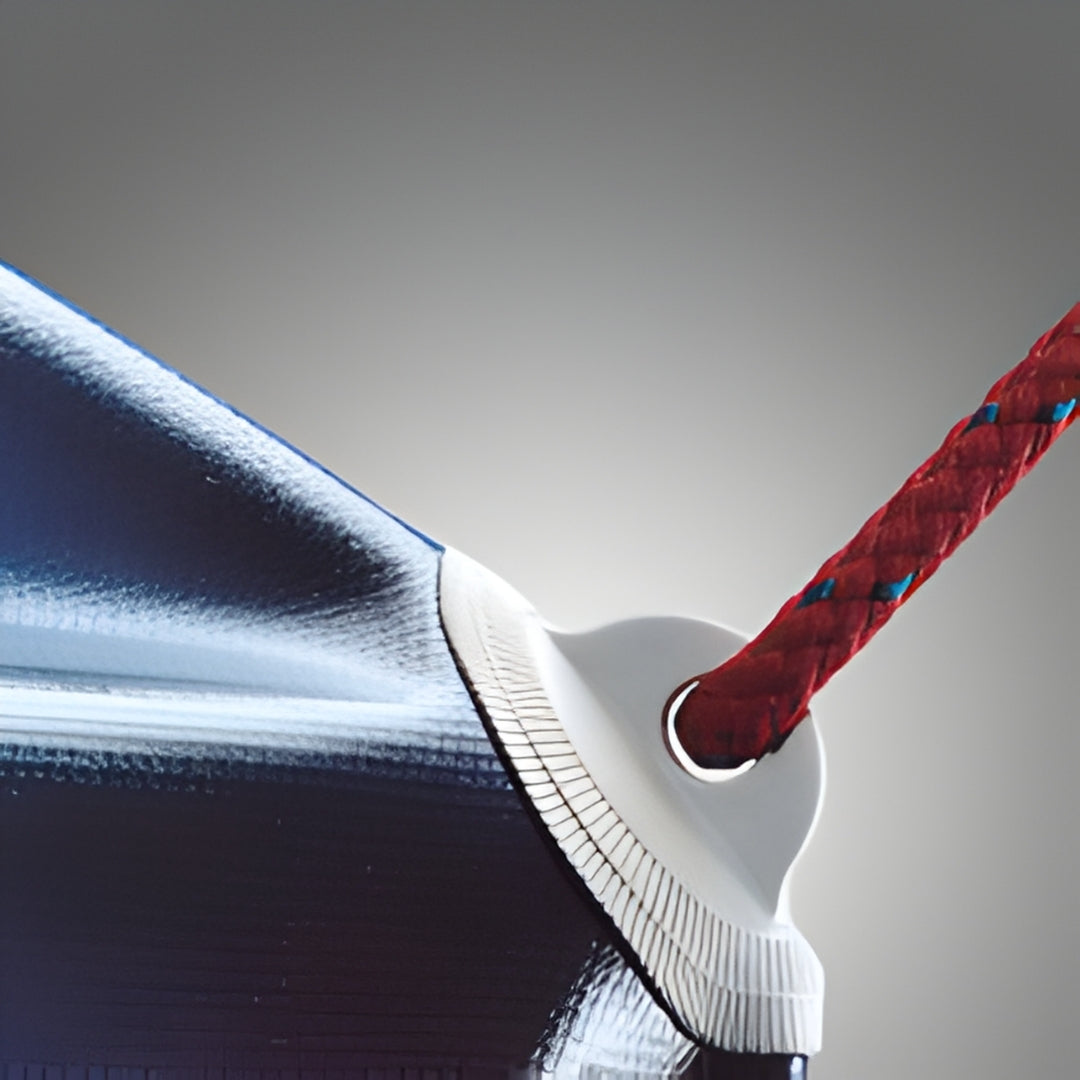

The Carmo 05‑146 Weldable Plastic Attachment Point is available here in full box quantities, ideal for large‑scale manufacturing, industrial production lines and OEM workflows. Each carton contains 3,000 units, supplied for maximum value and consistency. This 9/39 mm attachment point is widely used across inflatables, marine products, play equipment, ventilation systems and textile structures, providing a dependable rope or line anchor for diameters up to 9mm.

The 05‑146 is engineered for High‑Frequency (HF) welding, ensuring strong, clean and reliable welds on PVC and PVC/PUR‑coated materials. Its specialised material blends—including PY28 high‑tensile PVC and low‑temperature PG57 PVC, optimised for welding performance and long‑term mechanical strength. It is compatible with Carmo electrode 07‑500‑0140.

Benefits for HF‑weld production:

• Seamless HF‑welding integration
• Strong adhesion and durable bonds
• High resistance to tearing, strain and shock loading
• Ideal for automated or semi‑automated production lines

Made from high‑performance PVC formulation, this attachment point provides:

• Corrosion‑free performance (no metal parts to rust or stain materials)
• High tensile strength for demanding applications
• Resistance to cracking or deformation, even in outdoor environments

These characteristics make it a reliable choice for products exposed to weather, mechanical stress, water and frequent handling.

Every attachment point is produced in Denmark using advanced injection‑moulding processes, ensuring:

• Consistent dimensions
• Reliable weldability
• Long‑term material stability
• Production aligned with sustainability‑focused standards

Bulk supply ensures that manufacturers benefit from predictable quality, stable supply and optimised unit cost per piece.

• Product Code: 05‑146

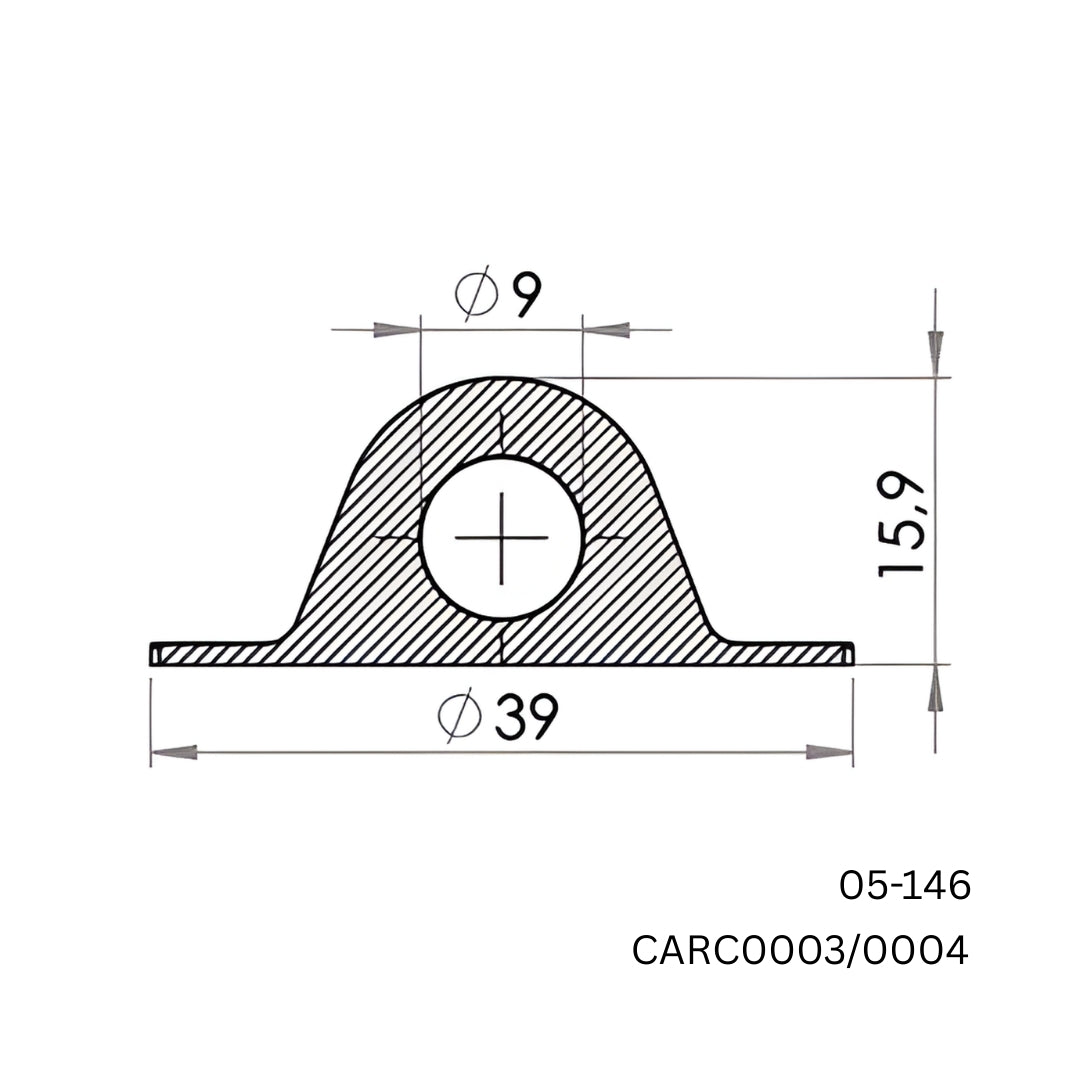

• Dimensions: 9/39 mm (rope up to Ø9 mm)
• Base: 39 mm round
• Welding: HF‑weldable with electrode 07‑500‑0140
• Standard Bulk Pack: 3,000 pcs per full box
