45,000 x Carmo 04‑100 Weldable PVC Eyelet – 8mm HF‑Welding Banner & Tarpaulin Reinforcement

Enhance large‑scale banner, tarpaulin and building‑wrap production with the Carmo 04‑100 Weldable Plastic Eyelet, engineered for exceptional strength, clean aesthetics and reliable HF‑welding performance. Manufactured in Denmark using high‑quality injection‑moulding, this 8 mm eyelet delivers consistent durability and long‑term resistance to rust, tearing and staining - unlike it's metal eyelet counter parts.

Optimised for High‑Frequency (HF) Welding

Specially developed geometry and PVC formulation ensure strong fusion with PVC foil. HF‑welded plastic eyelets provide significantly higher pull‑force performance than metal alternatives—particularly on mesh materials.

Typical HF welding cycle times:

• 1.5 seconds (single eyelets)
• 2–3 seconds (double eyelets)
  These vary depending on generator type, sheet thickness and number of layers.

Durable, Rust‑Free and Tear‑Resistant

PVC eyelets will not rust, stain or tear out of the substrate, even under demanding outdoor conditions.

Sustainability Benefits

Same‑material welding supports easier recycling of PVC and vinyl banners at end of life.

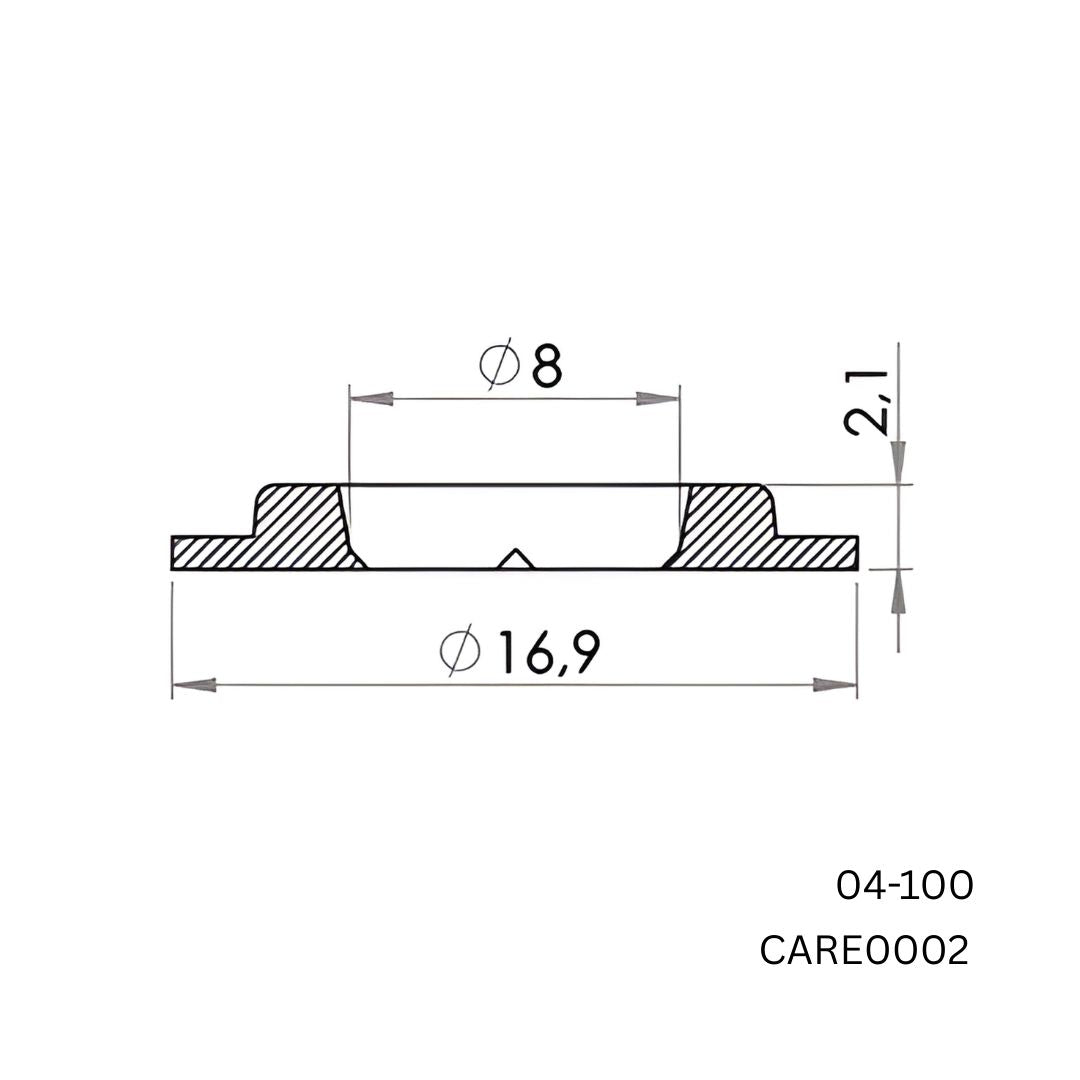

Technical Details

• Product Code: 04‑100
• Internal Diameter: 8 mm
• Material: Weldable PVC
• Design: Square‑shouldered, light eyelet
• Manufacturing: Injection‑moulded in Denmark for consistent quality and sustainability focus.

Typical Applications

• PVC & vinyl banners
• Tarpaulins
• Building wraps
• Mesh materials
• Any HF‑weldable PVC‑based fabrication project [carmo.dk]

If you are looking for less than box quantity, please use this link HERE to order from our stocks in Lancashire.

When ordered, this dedicated bulk‑buy listing will be added to our next monthly Carmo order, placed on the 4th Wednesday of each month (close off at 12 noon). Once confirmed we expect to receive that from Carmo in around 10-14 days, at which time we will inspect, check and send on your order, using a next day delivery.
