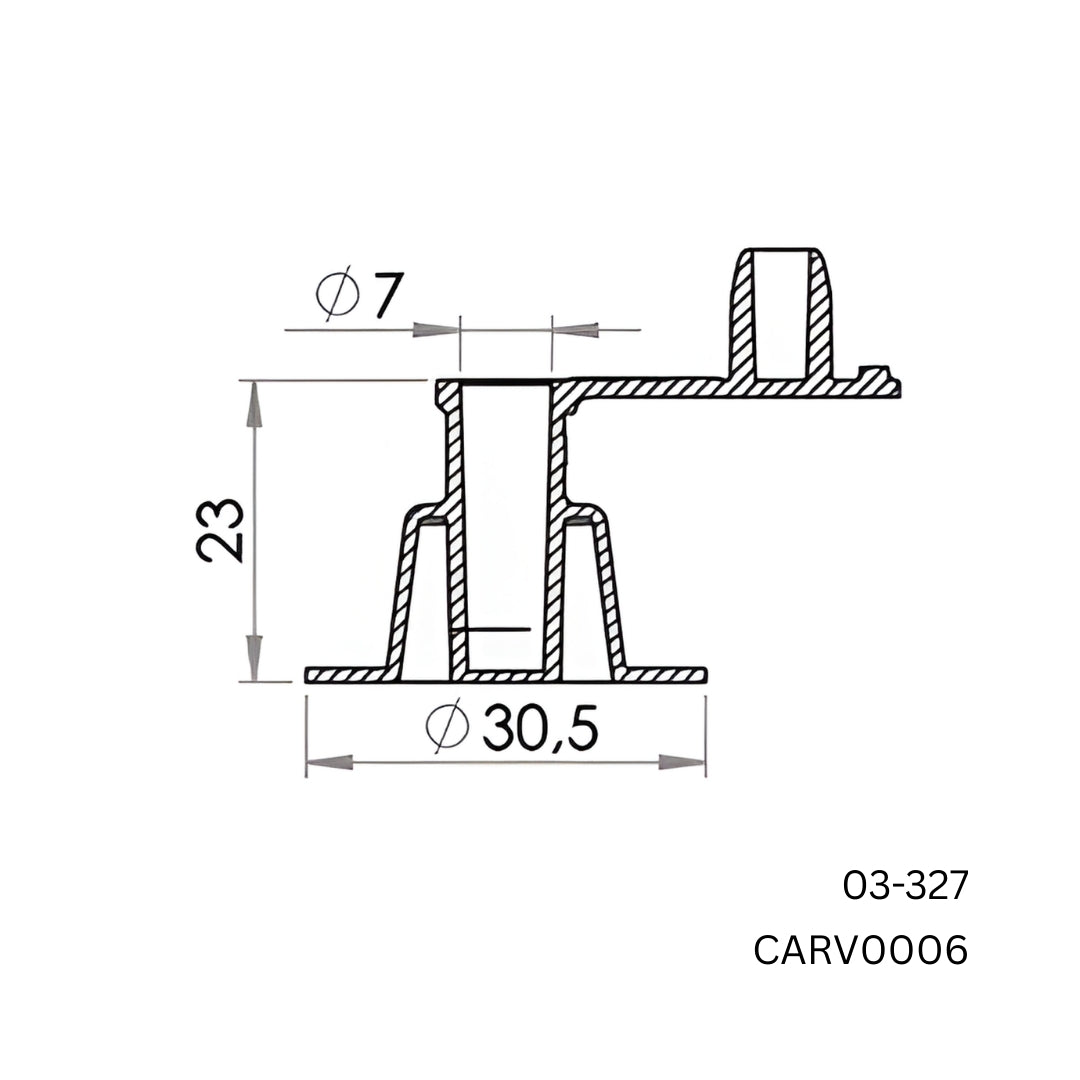

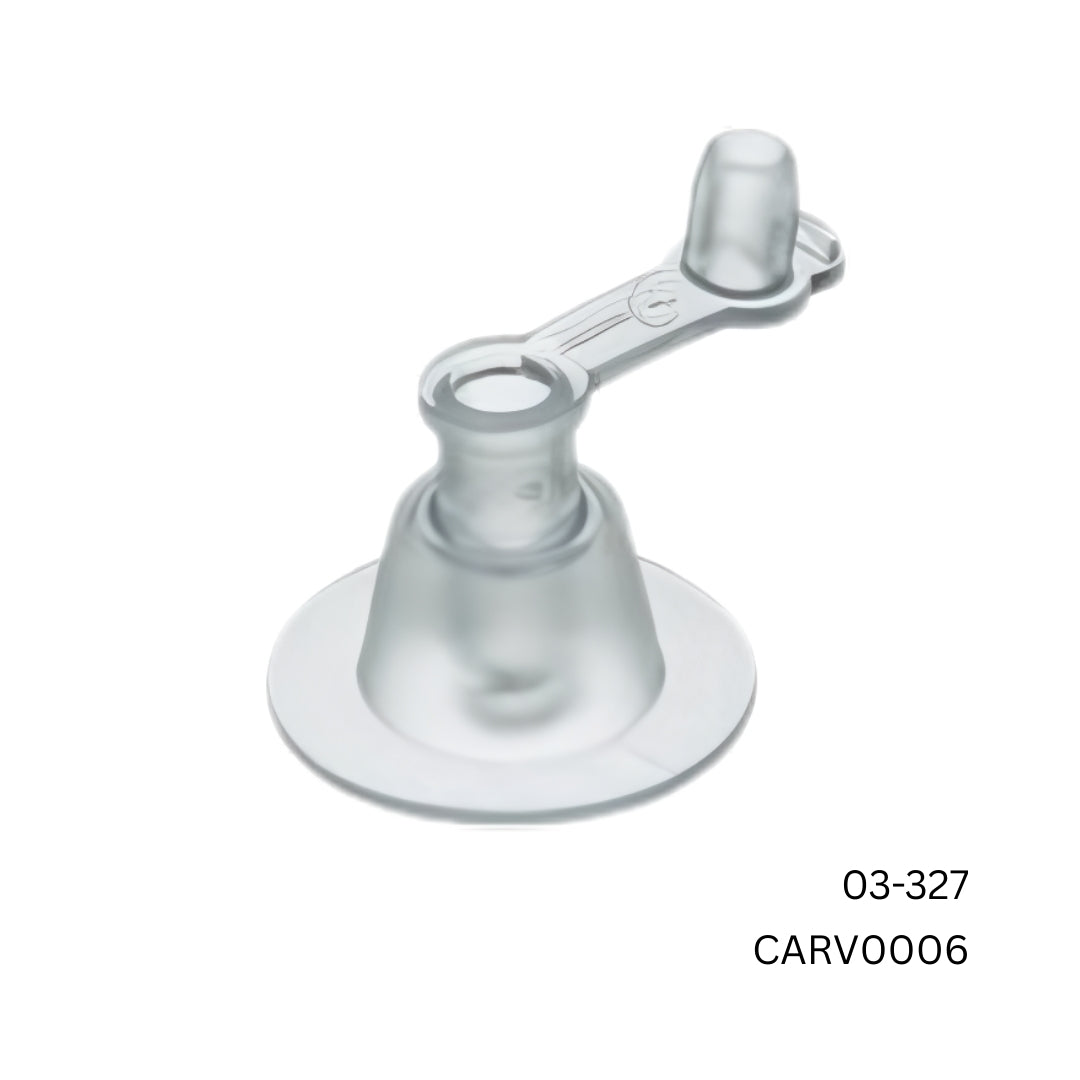

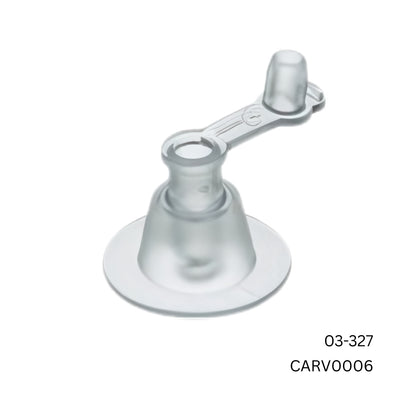

4000 x Carmo 03‑327 HF/Ultrasonic Weldable Non‑Return Inflation Valve – 7 mm Inlet PVC/PUR (Copy)

The Carmo 03‑327 Non‑Return Inflation Valve is a high‑quality HF/ultrasonic weldable component designed for inflatables that require quick, straightforward inflation and controlled deflation. Its integrated non‑return mechanism allows air to flow in freely while preventing accidental backflow. When deflation is needed, simply press the base of the valve to release air smoothly and predictably.

Both the geometry and material composition of the 03‑327 valve have been specifically optimised for High‑Frequency (HF) welding, ensuring strong, consistent welds on PVC and PVC/PUR‑based materials. This upgraded design replaces the earlier 03‑664 model while retaining the same proven functionality with improved weld performance and manufacturing precision.

Manufactured in Denmark using Carmo’s precise injection‑moulding process, the valve offers excellent dimensional accuracy, long‑term durability and dependable performance. Carmo prioritises responsible, sustainable production methods, ensuring each component is made with careful consideration for environmental impact.

For optimal HF welding, the valve is compatible with Carmo’s dedicated 07‑300‑0140 electrode, enabling secure, repeatable results in production environments.

With PVC/PUR small‑volume options available from our UK stock, the 03‑327 valve is widely used across a range of applications, including:

• Inflatable leisure products
• Technical textile inflatables
• Industrial inflatable structures
• Marine and safety equipment

If you are looking for less than box quantity, please use this link HERE to order from our stocks in Lancashire.

When ordered, this dedicated bulk‑buy listing will be added to our next monthly Carmo order, placed on the 4th Wednesday of each month (close off at 12 noon). Once confirmed we expect to receive that from Carmo in around 10-14 days, at which time we will inspect, check and send on your order, using a next day delivery.
